The challenge
A project to scan the document archives commenced in 2016. SharePoint is on the cloud and freely available to universities, so the information was catalogued there, and a Building directory was constructed to store more than 20,000 documents associated with the university's facilities.
Drawings took too long to find in SharePoint, which cost time and left uncertainty around duplicates. The drawing handover process also left documents missing that contractors still needed to deliver. These are the walls described in Lunr compared with SharePoint for engineering drawings.
The problem is common to the Property Services and Facilities Management area of all universities, a pattern set out in Lunr for universities. Managing documentation, including 3D and BIM (Building Information Models), required a new approach to replace the current system, integrate with critical systems such as the GIS, and combine access for internal users and external contractors.
The approach
UC ran several initiatives to identify the issues and develop the requirements of a new system, with stakeholders engaged throughout:
- Identify and define the issues through a series of workshops.
- Prepare the business case and seek funding.
- Formulate the statement of requirements, capturing what regular users, irregular users, consultants, contractors, and others need, how they will use the system, and for what purpose.
- Run the procurement and evaluation process.
- Consider feel and appearance to ensure a user-friendly adoption.
- Understand the quantity and quality of the existing drawings.
- Determine the tagging and identification of drawings related to assets.
Lunr was selected in an RFQ tender process, with Onset Design engaged to provide implementation, training, support services, and data migration from SharePoint to Lunr.
An initial period of scoping and design resulted in agreement on the Solution Design document, and work commenced on the data migration, including cleansing, transformation, and duplicate identification. Initial training prepared users for User Acceptance Testing, and configuration adjustments followed the UAT feedback.
The outcome
The data migration improved system integrity, and the Lunr XRAY component captured additional information from scanned images. As a result, drawings are easily located in Lunr, reducing the time spent retrieving drawings.
Daniel Byrnes is the Digital Systems Coordinator for Campus Estate with the University of Canberra and describes Lunr as follows:
Lunr is a simple solution that provides the flexibility to develop the system to our needs. Onset Design has provided dedicated staff to assist with the conceptual elements, configuration, and development, and it has engaged and trained staff effectively through a series of workshops. Lunr is simple to use, and minimal training is required with the ability to embed short, customised videos for a self-service portal.
Benefits are being realised in a self-service, or 'communal', system that allows for easy user onboarding, as drawings are shared via transmittals and RFIs embedded within the system. Lunr simplifies external access by removing the delays associated with affiliate access approval while clearly showing what contractors and consultants are accessing. Internal staff access is integrated via single sign-on (SSO).

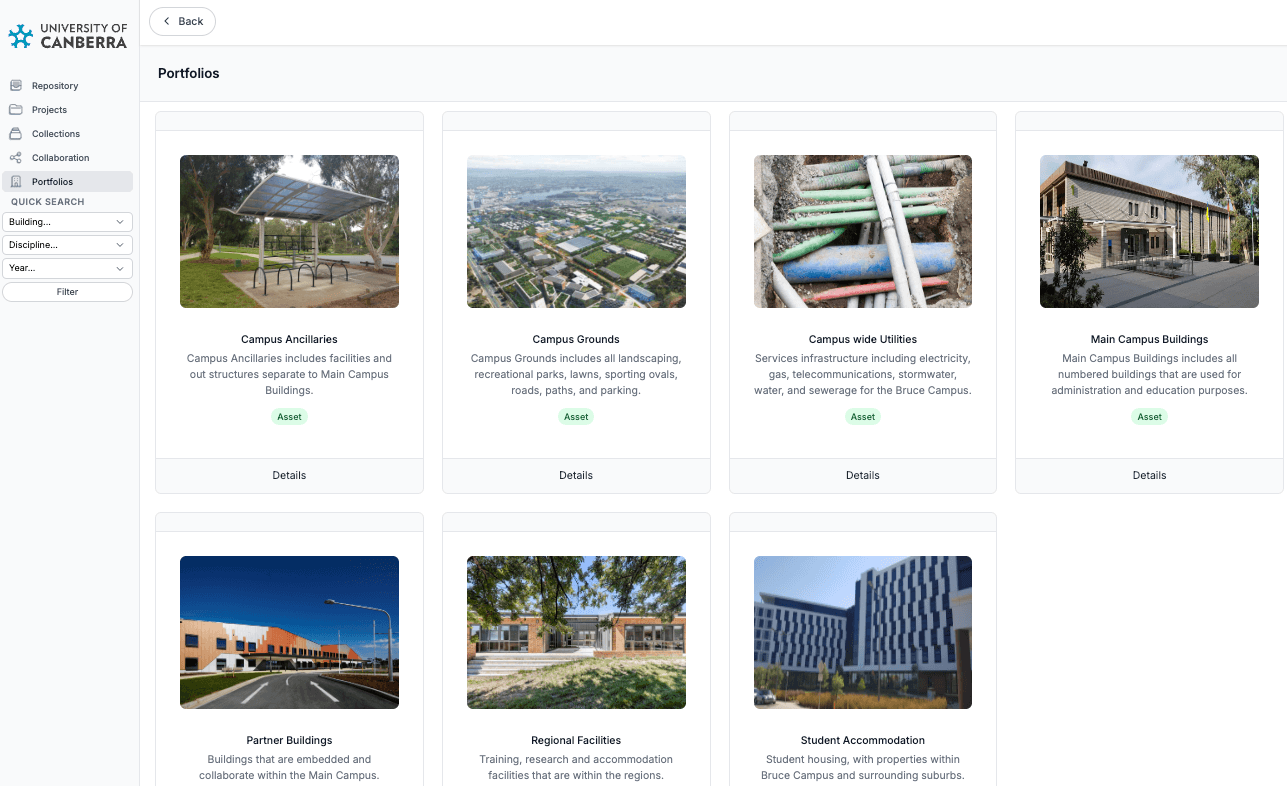

The Portfolios feature of Lunr provides overall building information, such as location, background, history, occupants, and GFA/UFA numbers. It gives a good insight for anyone new to the University estate.
Viewing platforms are embedded within the system, so everyday users view CAD files via autogenerated PDF without requiring additional software such as DWG TrueView, and without requesting assistance to open and print the file. The viewing tools also allow redline markup and viewing Revit and IFC files.

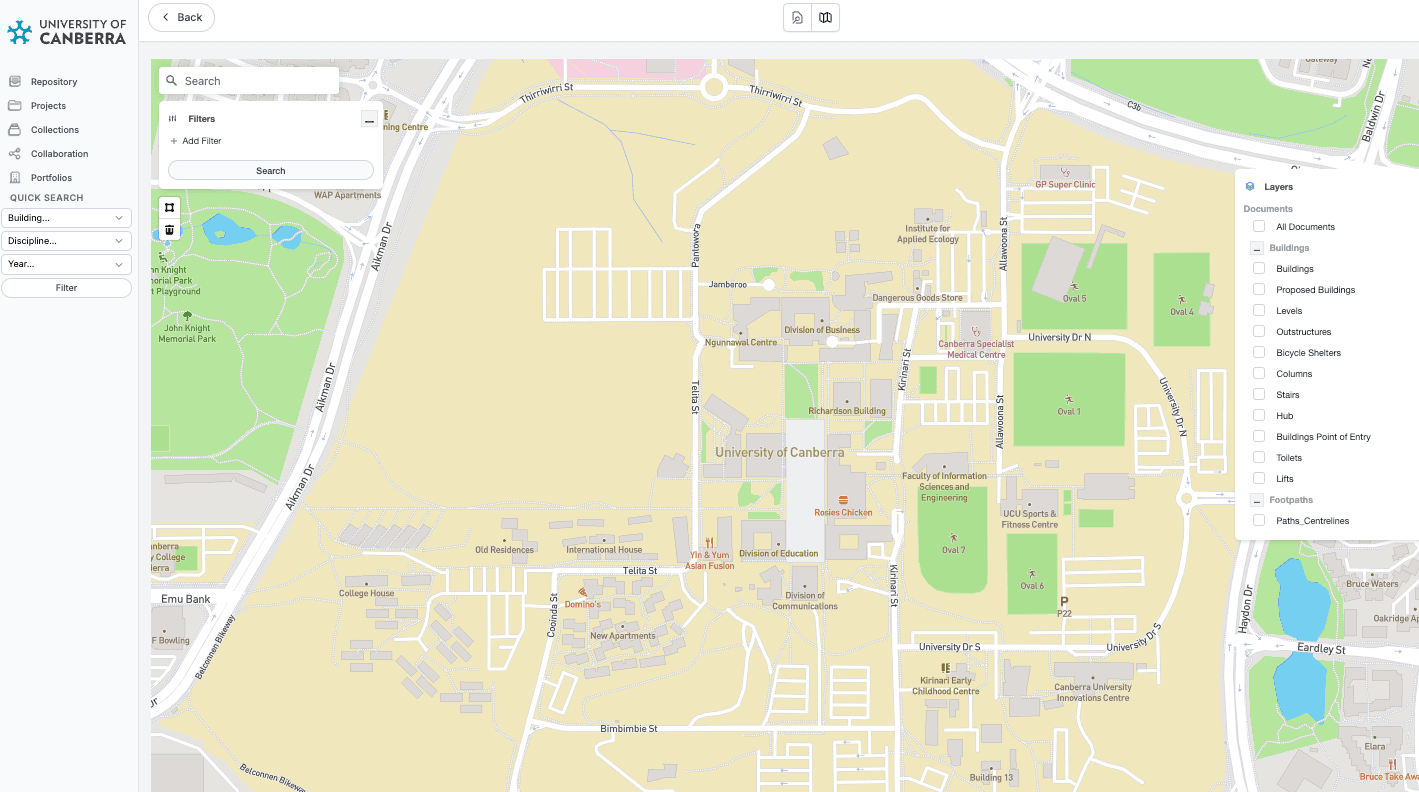

Advanced searching includes a spatial search using GIS data from Esri, which is particularly useful for finding drawings for the university's most complicated buildings (Building 1) and utilities.
System integrations
Map search is enhanced by using the Esri connector to control the visibility of GIS layers in Lunr. The ability to integrate with the GIS shows the way forward, and the potential to integrate with other tools like Archibus and the CMMS (Computerised Maintenance Management System) represents the next steps.
On the record
- The main campus, in the Canberra suburb of Bruce, went live with Lunr in July 2022.
- Around 20,000 drawings were migrated from SharePoint.
- Lunr was selected in an RFQ tender process.
- Onset Design delivered the Lunr solution and provided services for data migration, training, testing, and ongoing support.
